Low Differential Pressure Transducers/Transmitters
Alpha low pressure differential pressure transducers & transmitters sensors are constructed by stainless steeland glass, no glue or other organics. That provides excellent performance, corrosion resistance and long-term stability.
Our low pressure transmitters/transducers cover the pressure range of 0.1 inch H2O to 100 inch H2O, or 25 Pa to 25000 Pa. With our unique manufacturing techniques, we can readily produce transducers sensors with custom pressure ranges and make use of them in very low pressure measurement or ultra low differential pressure measurement.
Alpha has the product to meet a breadth of HVAC,critical environments,animal husbandry,textile industry applications and can be trusted in your most critical applications.
Model 161 Cost-effective Differential Pressure Transducer
The Model 161 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$170.00 |
Model 162 Cost-effective Differential Pressure Transducer
The Model 162 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$170.00 |

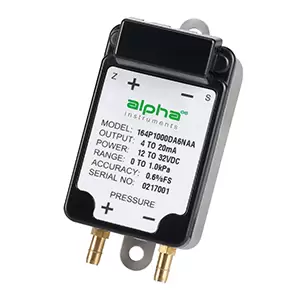

Model 164 Stainless Steel Differential Pressure Transducer
The Model 164 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$225.00 |
Model 165 Stainless Steel Differential Pressure Transducer
The Model 165 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$225.00 |
Model 166 Cost-effective Differential Pressure Transducer
The Model 166 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$185.00 |
Model 167 DIN Rail Mount Differential Pressure Transducer
The Model 167 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$260.00 |
Model 168 intrinsically safe Differential Pressure Transducer
The Model 168 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$300.00 |

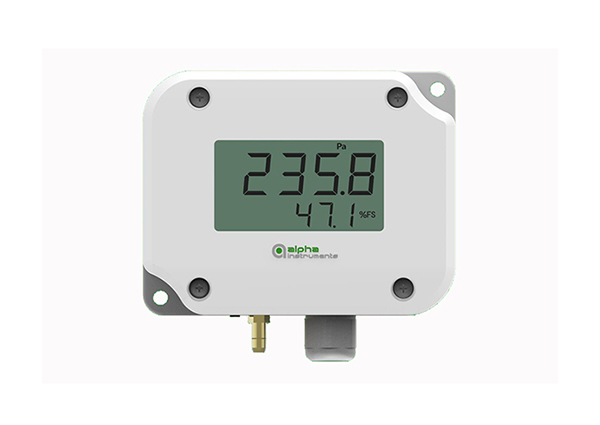

Model 172 Differential Pressure Transmitter
The Model 172 series are low-range differential pressure transmitters withcapacitive sensors. The patented stainless steel diaphragm sensor providesexcellent corrosion resistance, repeatability , and long-term stability.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 1% of span | A: 4-20mA B:0-5V C:0-10V D:RS485 I:I²C N: None S: Special |
Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$330.00 |
Model 172M Differential Pressure Transmitter
The Model 172 series are low-range differential pressure transmitters withcapacitive sensors. The patented stainless steel diaphragm sensor providesexcellent corrosion resistance, repeatability , and long-term stability.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%、0.4%、1% of span | A: 4-20mA B:0-5V C: 0-10V D: RS485 I: I²C N: None S: Special |
Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$360.00 |
Model 175 Push Button Zero Differential Pressure Transducer
The Model 175 differential pressure transducer provide excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA,0-5VDC, 0-10VDC | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±12.5 Pa to ±12500 Pa） |
$335.00 |
Model 178 LCD Display Differential Pressure Transmitter
The Model 178 differential pressure transmitter provide digital display, excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$420.00 |

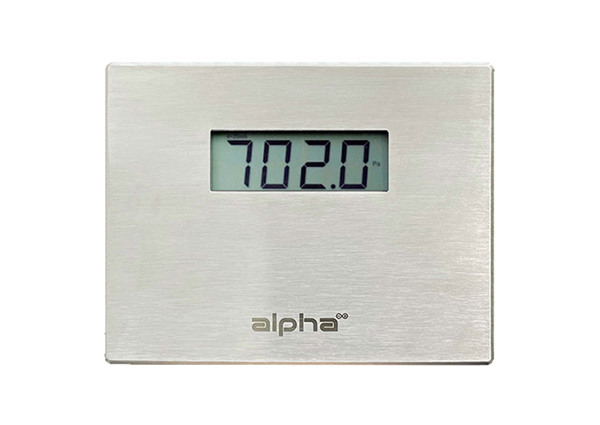

Model 178A Front Panel Mounting Differential Pressure Transmitter
The Model 178A differential pressure transmitter provide digital display, excellent sensitivity and long term stability, assuring precise measurement and control at extremely low differential pressures.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%, 0.4%, 0.6% of span | 4-20mA | Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$420.00 |
Model UFS Differential Pressure Transmitter
The Model 172 series are low-range differential pressure transmitters withcapacitive sensors. The patented stainless steel diaphragm sensor providesexcellent corrosion resistance, repeatability , and long-term stability.
| Accuracy | Output | Range | List Price Starting At |
| 0.25%、0.4%、1% of span | A:4-20mA B:0-5VDC C:0-10VDC D:RS485 E::Analogue+Digital F:Without |
Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.(or 25 Pa to 25000 Pa) Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.(or ±10 Pa to ±10000 Pa） |
$380.00 |
